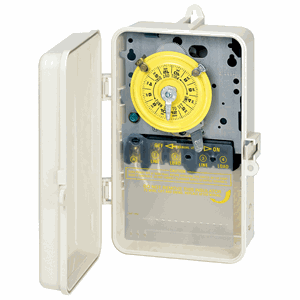

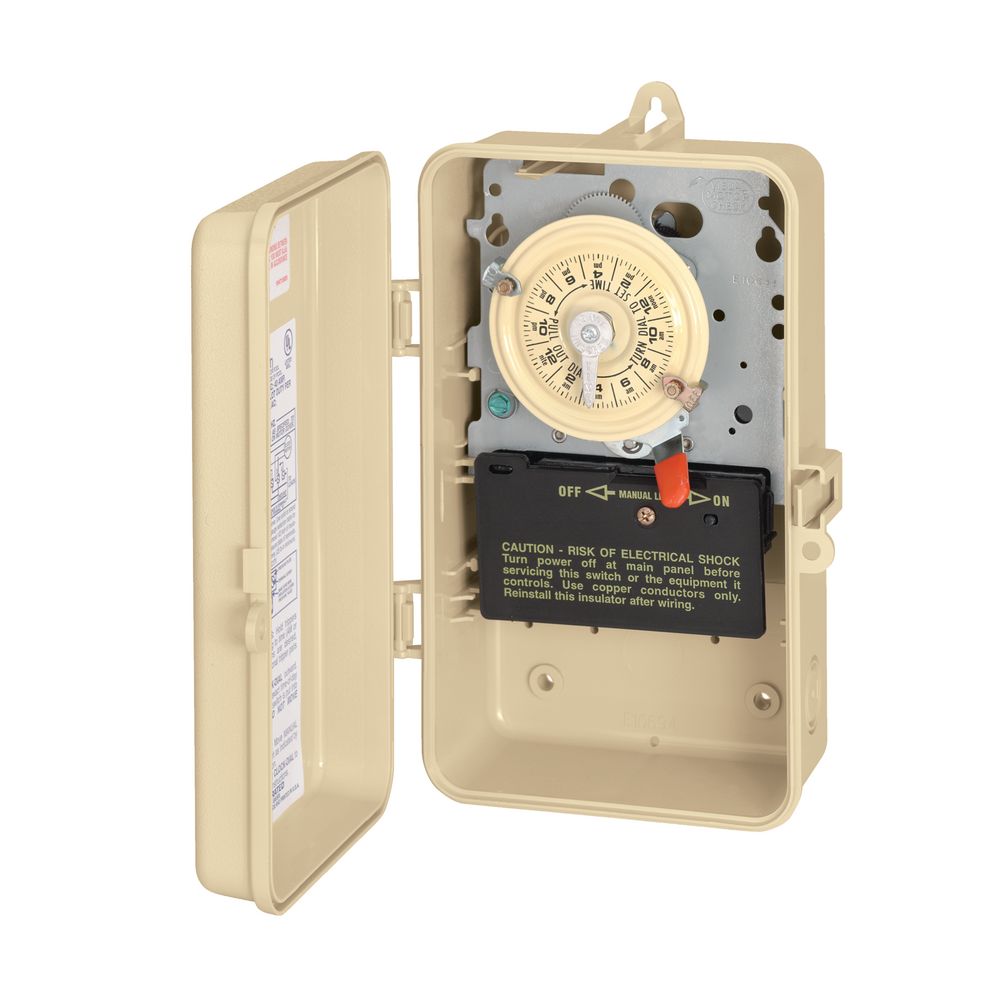

T100 Series Pool & Spa Time Switches T101P3. These heavy duty Mechanical Time Switches are designed for industrial, commercial and residential applications and have the highest motor load ratings in the industry.
They provide up to 12 ON-OFF operations each day with a minimum ON-OFF time of 1 hour. All models are equipped with ’0LON’0M and ’0LOFF’0M trippers Specifications
Case: NEMA 3R rated for indoor-outdoor installation. 0.034" outdoor grade plastics 9-3/8" (23.8 cm) H, 5-1/2" (14.0 cm) W x 3-5/8" (9.2 cm) D in beige finish.
Knockouts: Combination 1/2"’0C3/4" nominal knockouts, (1) on back and each side of case and (2) on bottom.
T101P3: 120 VAC clock supply, 60 Hz, SPST switching. Ratings at 120 VAC include 40 A resistive/inductive/tungsten, 2 HP motor and 1,000 VA pilot duty. The broader 240–480 V and 5 HP figures in T100-family tables do not establish this model’s supply or motor rating. Confirm the unit’s wiring diagram and nameplate before installation.
Agency Approval: CSA/C-US
