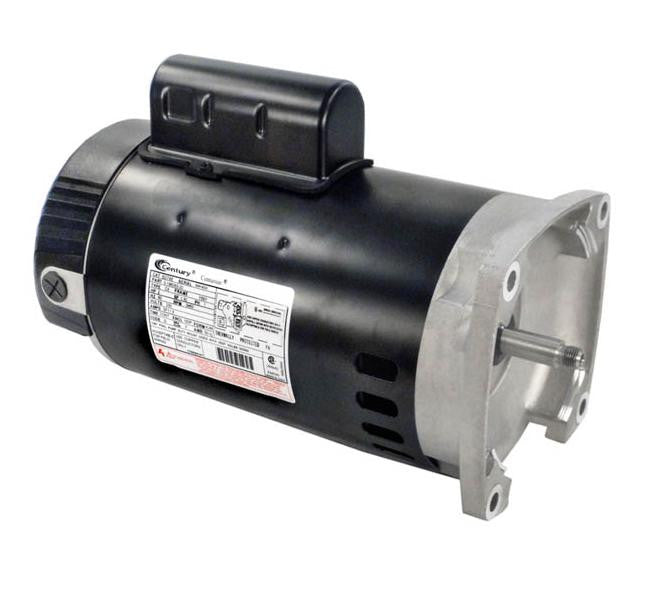

Replacement 2HP 56Y Motor model B2748

$425.00

  • Regal Rexnord Replacement 2HP 56Y Motor model B2748
$425.00
$425.00

Estimated Shipping Widget will be displayed here!

Low stock! Only 20 left

The Century B2748 is a 2 HP, single-phase replacement pool pump motor with a 56Y square-flange frame. Confirm the pump application, flange, shaft, voltage and total horsepower before selecting a replacement.

  • 230 V, 60 Hz; nameplate speed 3450 rpm
  • Service factor: 1.3; service-factor current: 11.5 A
  • Permanent split capacitor design
  • Threaded shaft and ball bearings
  • Continuous duty, Class F insulation and thermal protection
  • Maximum rated ambient temperature: 50°C
  • Open drip-proof enclosure; this is not a waterproof or submersible motor

Service factor and thermal protection are motor ratings, not permission to overload the motor or expose it to water. Follow the motor wiring diagram and the pump manufacturer’s service instructions.

Replacement 2HP 56Y Motor model B2748

$425.00

Frequently asked questions

What are the main features of the Replacement 2HP 56Y Motor model B2748?

Century specifies a 2 HP, 230 V, single-phase, 56Y pool pump motor with threaded shaft, ball bearings, thermal protection and a 50°C ambient rating.

Is the Replacement 2HP 56Y Motor model B2748 easy to install?

Confirm the exact pump, square-flange mounting, shaft, voltage and total horsepower. Follow the wiring diagram and pump service instructions; a threaded shaft alone does not establish compatibility.

What applications is the Replacement 2HP 56Y Motor model B2748 suitable for?

The B2748 is a replacement pool pump motor. It should be matched to a compatible pump rather than selected as a general-purpose industrial motor.

How does the motor's design contribute to its longevity?

It has ball bearings, a permanent split capacitor design and thermal protection. Its open drip-proof enclosure is not waterproof or suitable for immersion.

What is the power output of the Replacement 2HP 56Y Motor model B2748?

The motor delivers a power output of 2 horsepower, providing strong performance for demanding operational needs.
