Single Head Adjustable Chemical Injection Pump by Stenner

$475.00

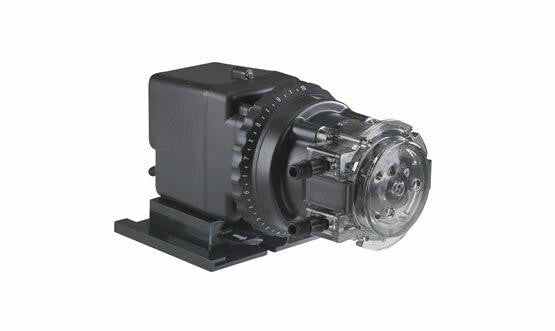

  • Stenner Pump Single Head Adjustable Chemical Injection Pump by Stenner

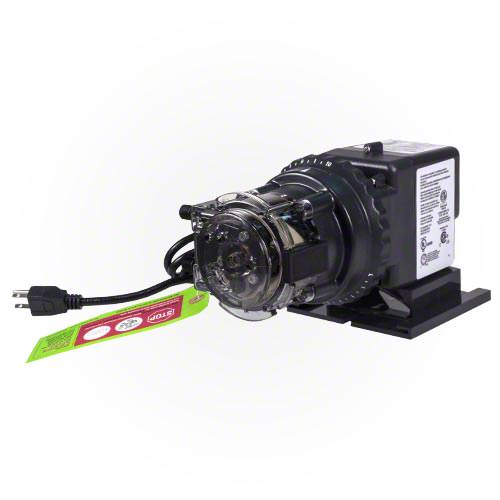

  • Stenner Classic 45M5 adjustable injection pump opposite side view

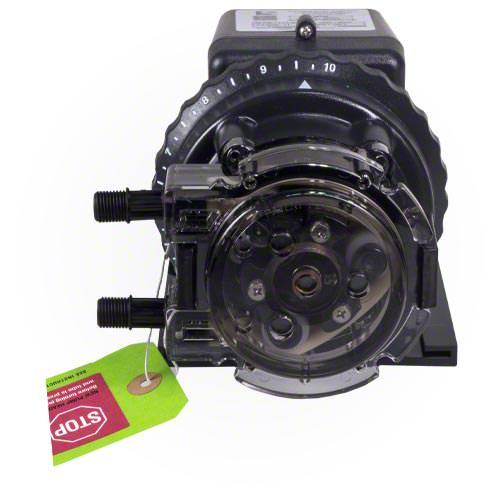

  • Stenner Classic 45M5 pump head and tube connections close-up

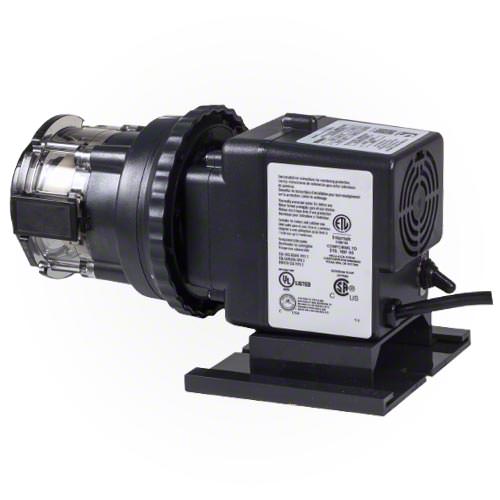

  • Stenner Classic 45M5 injection pump rear motor and specification-label view
Stenner Model
$475.00
$475.00

Estimated Shipping Widget will be displayed here!

Low stock! Only 8 left

With its versatile capabilities, the Classic Single Head Adjustable Chemical Injection pump is a popular choice for water treatment solutions. The Classic Series Single Head Adjustable Pump is an ideal choice for treating problem water. The pump can inject water treatment solutions for pH control or to oxidize iron, hydrogen sulfide or manganese for removal by filtration. Disinfection, pH control or adjustment, corrosion and scale control and oxidation are common water treatment applications found in markets such as Water Conditioning, Animal Health, Industrial Process, Water and Wastewater, and Cooling Towers. The versatility of the product expands into other markets as well, such as Legionella prevention in Cooling Towers, sprinkler head cleaning in Irrigation and Horticulture and plating bath treatment in the Metal Finishing industry. The pumps are widely popular in the commercial pool industry for sanitizing swimming pool water or maintaining the equipment. Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or Contact Us. Unique Stenner Features Interchangeable pump heads and tubes to convert one model to another without having to purchase a new pump.Easy and fast tube replacement without tools with the QuickPror^ pump head.

The pump is built with three detachable components; the motor, feed rate control and the pump head that can be separated without tools.

How the Single Head Adjustable Chemical Injection Pump Works: The output is determined by three factors; the rpm of the motor gears, the setting on the feed rate control and the pump tube size. The feed rate control has an external dial ring that is labeled L to 10 offering an adjustable output range from 5% to 100% in 2.5% increments.

45 Series Adjustable

26 rpm

45M2 Model 45MJL2A1STAA Specifications: 0.5-10.0 gpd at up to 25 psi (1.7 bar); the 100-psi 10-GPD model uses prefix 45MJH2, not 45MJL2

45M5 Model 45MJL5A1STAA Specifications: 2.5-50.0 gpd up to 25 psi (1.7 bar)

Single Head Adjustable Chemical Injection Pump by Stenner

$475.00

Frequently asked questions

What is the main function of the Single Head Adjustable Chemical Injection Pump by Stenner?

The pump is designed for treating problem water by injecting various water treatment solutions for applications such as pH control, disinfection, corrosion control, and oxidizing contaminants like iron and manganese.

In which industries can the Stenner Chemical Injection Pump be used?

The pump is widely used in industries such as Water Conditioning, Animal Health, Industrial Process, Water and Wastewater management, Cooling Towers, and even the Metal Finishing industry.

How is the flow rate of the pump adjusted?

The flow rate is adjustable through an external dial ring on the feed rate control, allowing settings from 5% to 100% in increments of 2.5%.

Is the pump easy to maintain and modify?

Yes, the pump features interchangeable pump heads and tubes for easy modification without the need to purchase new equipment, and it allows for quick tube replacement without tools.

What should I check to ensure compatibility with the pump?

Match chemical compatibility, tube material, voltage, flow and operating pressure to the exact pump. The listed 45MJL2 has a 25-psi maximum and approximately 0.5–10 GPD at 60 Hz; the 100-psi 10-GPD version uses prefix 45MJH2. Field-calibrate the output.
